Affichage négatif d'affichage à cristaux liquides de sept segments avec le connecteur mâle En métal pour la minuterie électronique
Détails sur le produit:
| Lieu d'origine: | DONGGUAN, CHINE |
| Nom de marque: | Fangsheng |
| Certification: | ISO9001:2015 |
| Numéro de modèle: | FVA2392MO01 |
Conditions de paiement et expédition:
| Quantité de commande min: | 500 |
|---|---|
| Prix: | Negotiation |
| Détails d'emballage: | Sac à bulles + boursouflure + boîte + carton de mousse |
| Délai de livraison: | 7-10 jours ouvrables |
| Conditions de paiement: | T/T, Western Union, Paypal, carte de crédit, D/A, D/P, L/C |
| Capacité d'approvisionnement: | 200K ensembles/mois |
|
Détail Infomation |
|||
| Type: | Affichage d'affichage à cristaux liquides de VA | Backgound: | Couleur noire |
|---|---|---|---|
| Tension: | 4,5 V | Connecteur: | Pin |
| Entraînement de la méthode: | Statique ou dynamique | Type de polariseur: | Transmissif, Transflective |
| Surligner: | Panneau d'affichage à cristaux liquides de VA,affichage à cristaux liquides vertical d'alignement |
||
Description de produit

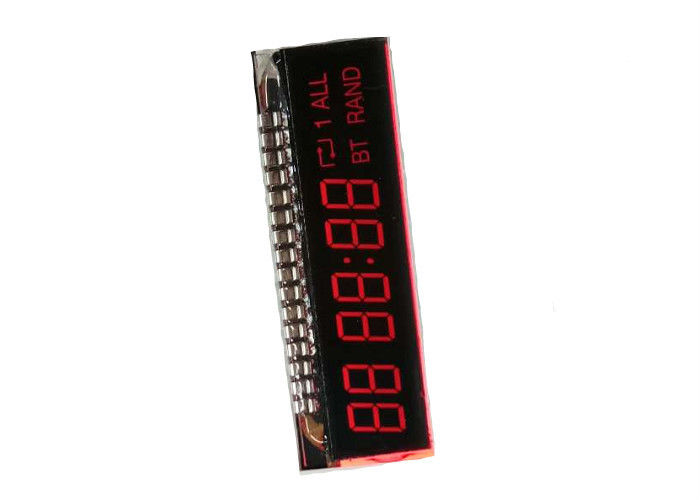

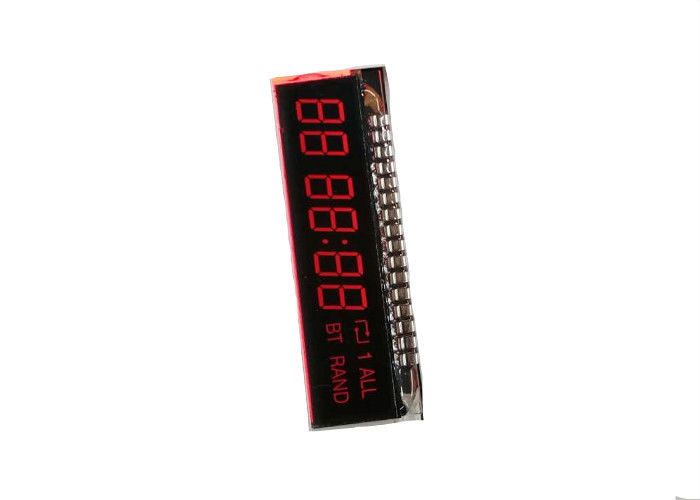

VA Lcd Display Custom LCD Module 7 Segment Lcd Negative Display With Metal PIn Connector Lcd For Electronic Timer
Specifications:
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | FSTN Lcd Display |
| 2 | Outline Size | 32.5mm ( L ) * 10.5mm ( W ) * 1.1mm T |
| 3 | VA Size | 30.5mm ( L ) * 6.5mm ( W ) |
| 4 | Viewing Direction | 6 O ' clock |
| 5 | Voltage | 4.5V |
| 6 | Display Mode | Nagetive |
| 7 | Polarizer Mode | Transmissive |
| 8 | Backlight | White Led |
| 9 | LED Number | 2pcs |
| 10 | Contactor | Pin |
Professonal Manufacture in Lcd Display since 2001Year.
*TFT Colored Screen *Monochrome Lcd
*Factory Supply *Specialize In Customization
*Long Time Supply *Professional Design
Product and Drawing Details:
Quality and Stability
1. Implementation of the International Quality System.
2 . Professional production control.
3 . Complete testing equipments .
4 . RoHS, REACH certificated
Drawing
How to choose LCD type?
| d.1. | Usually,TN LCD is widely using, such as power meter LCD, telephone LCD, calculator LCD, electric cooker LCD etc. TN LCD is cheapest , but viewing angle is narrow. |
| d.2. | HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD. |
| d.3. | STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much,STN LCD not only can make segment LCD,but also can make dot matrix LCD.Unit price of STN LCD is higher than HTN LCD. |
| d.4. | FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's. |
| d.5. | VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general,VA LCD has a excellent display result.If you want a wonderful display result,VA LCD will be your best choice. |
| d.6. | Price of HTN is little high than TN, but low than STN, VA and FSTN. |
The terms of Business Trade
1 . Payment : T/T, L/C at sight, Western Union, Paypal, VISA, Creadit Card etc.
2 . Leading time : It takes12 -15 days for samples after receiving the tooling cost.
3 . Trade Term : FOB, EXW, CIF, CNF.
4 . Sample : If you want to our free sample you need to pay for the shipping fee.
5. Standard payment terms: pay 30% deposit in advance, 70% balance before shipment.
6. 25-30 business days. It depends on different order quantitie
Application
Our products have been widely used in consumer electronics and industrial meter filed, such as car audio, washing machine, cending machine, medical instrument, coffee machine. POS terminals, cash register, remote controller, counter display, portable power charger and so on.
